Fixed Receive Site
Border security entails covering large expanses of land across undeveloped areas, which means that a powerful video downlink is essential.

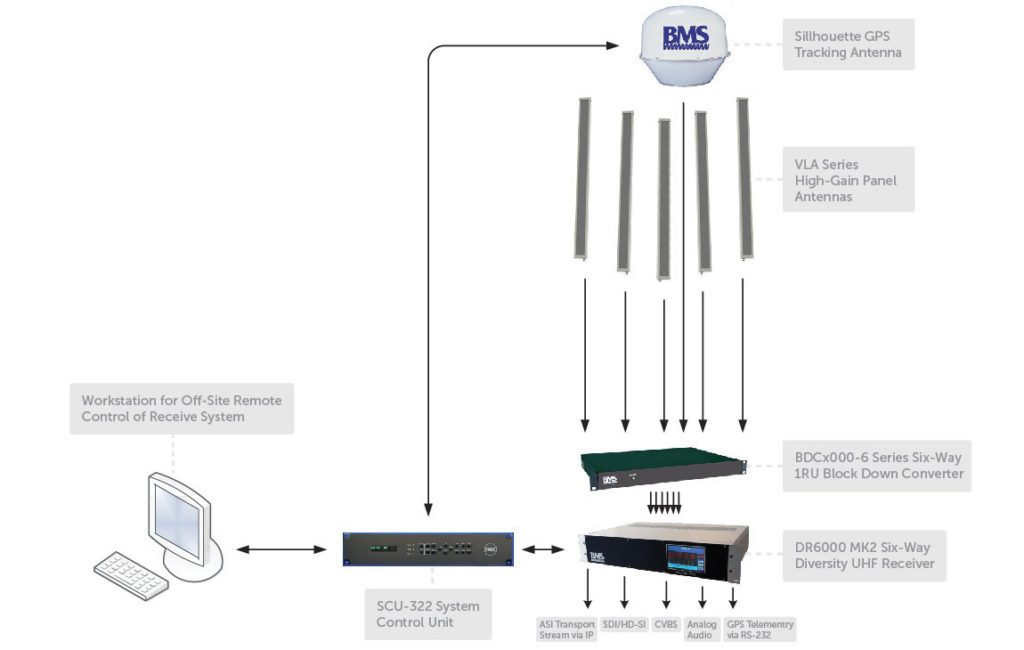

Fixed receive sites from BMS create the backbone of a government surveillance/border security network. The combination of the DR6000 Six-Way Diversity UHF receiver with VLA series High-Gain Panel Antennas (and an optional Silhouette GPS Tracking Antenna) enables HD coverage with a 50+ mile radius, depending on operating altitude and line-of-sight availability. Multiple receive sites extend the coverage area, and the downlinked video, audio, and data can easily be returned to a central monitoring station via the standard ASI over IP interface of the DR6000. The remote control via IP capability of the DR6000 enables fully remote operation and monitoring without the need for on-site personnel.
Each receive site is capable of outputting SDI (with embedded audio), CVBS, Analog Audio, and ASI over IP for standard definition transmission, or HD-SDI (with embedded audio), Analog Audio, and ASI over IP for high definition transmission.
