The Verus In-Car Video System delivers high-quality video and audio that can be live-streamed to multiple locations or stored for uploading later. The system starts recording automatically when triggered by an event such as turning on the vehicle light bar, and can be manually activated via the wireless microphone. The Verus Recorder utilizes open standard IP cameras and supports a wide variety of configurations.

Tethered or Solo* Configurations

  • H.264 compression enables HD recording without sacrificing storage capacity
  • Installation is simple, requiring a single basic ethernet cable per camera
  • Software is updated remotely and automatically

*The Verus Solo Recorder includes an internal power supply which allows the system to operate independently from the in-car PC, and features integrated 802.11ac WiFi, which uses the 5GHz band for the fastest possible upload speeds.

Verus Recorder

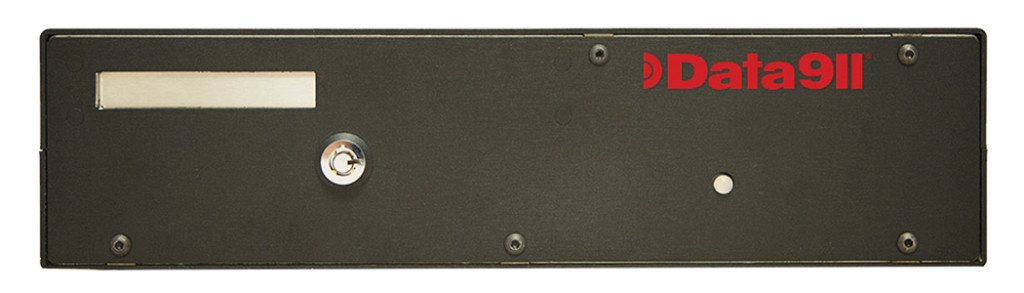

Front of Unit
  • Powered by your in-vehicle computer
  • Connect up to 6 HD/IP cameras
  • Live Streaming Video to multiple locations simultaneously
  • Video Encoding – H.264
  • 4 MP3 Audio channels (CD Quality Sound)
  • 2 SD Memory Card slots (also backs up to PC HD)
  • 6 physical GPI configurable triggers
  • Accelerometer, GPS, wireless microphone(s) and LPR triggers
  • Supports 2 Wireless Microphones
  • Software updates are pushed automatically to vehicles
  • License Plate Recognition ready (Optional)
  • Integrates with body-worn cameras
  • Uploads Video to to Evidence Mgmt over WiFi or cellular networks

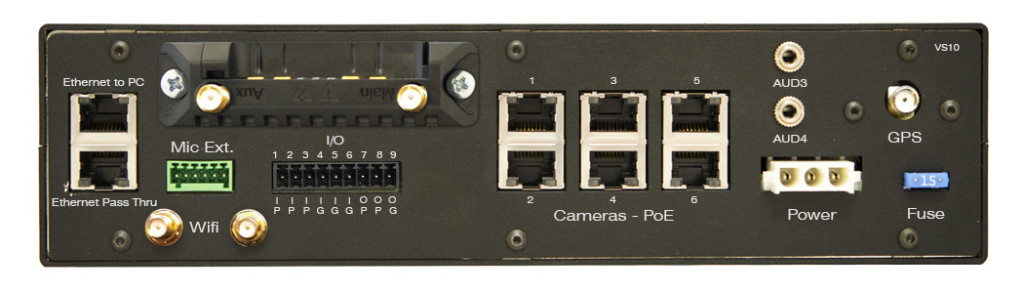

Rear of Unit
  • Physical Size: 249mm x 131 mm x 64mm
  • Recording Rate: Configurable up to 30 Frames Per Second
  • Pre-Event Recording configurable up to 5 minutes
  • Operating Vibration: 100+ g shock
  • Operating Temperature: -30°C to +70°C
  • Crash Sensor: 3 axis accelerometer built-in configurable
  • Recording Format: 64GB SD standard (128GB available, up to a maximum of 256GB using 2 SD slots)

Front Camera

  • Interior Front 2 Megapixel IP Camera
  • 720p/60 or 1080p/30
  • 2.9mm lens, .2 lux rating
  • Fixed lens with digital zoom only, automatic focus
  • 140° viewing angle
  • Shutter Speed 1/25 ~ 1/10,000
  • H.264 compression, dual streaming video
  • Auto White Balance and Auto Exposure (ACE Technology)
  • Fast Ethernet (100 Mbps)
  • PoE (Power over Ethernet)
  • 2” x 2” by 2.2” depth

Rear Seat Camera

  • Resolution 1920x1080p HD or 1280x720p HD, 30FPS
  • Day/Night function, Infrared Projection 0 lx
  • H.264 Video Codec
  • 80mm x 70mm x 52mm, 16.0 oz
  • RJ45 Ethernet interface, PoE (Power over Ethernet)
  • 120°wide angle view

Wireless Microphone

  • Frequency 900 MHz
  • Modulation DSSS
  • RF Power 148 mW
  • Operating Range Over 2000’
  • External Lapel Microphone
  • Excellent Signal Penetration
  • Up to 2 microphones per vehicle
  • Multichannel with Auto Synchronization
  • 1600mAh Li-Ion Battery (non-proprietary/easy to replace)
  • Charging 3.0 Hours
  • Talk Time up to 18 Hours
  • Standby up to 2 weeks
  • Size 88mm x 52.5mm x 28.5mm
  • Weight 120g (w/Battery)
  • IP66 dust and water resistant

Verus In-Car System
